Thông tin cấu hình

• Storage Controllers: • Internal controllers: PERC H345, PERC H745, PERC H755, PERC H755N, HBA355i, S150 • Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSSS1): HWRAID 2 x M.2 SSDs, USB • External PERC (RAID): PERC H840, HBA355e
• Processor: Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores
• Power Supply: • 600 W DC/240 V • 600 W Platinum AC/100 – 240 V • 800 W DC/240 V • 800 W Platinum AC/100 – 240 V • 1100 W DC/-48–(-60) V • 1100 W DC/240 V • 1100 W Titanium AC/100 – 240 V • 1400 W DC/240 V • 1400 W Platinum AC/100 – 240 V

Thông tin cấu hình

• Processor: Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores
• Memory: • 16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s • Supports registered ECC DDR4 DIMMs only
• Storage Controllers: • Internal controllers: PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355i, S150 • Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSSS1): HWRAID 2 x M.2 SSDs, USB • External PERC (RAID): PERC H840, HBA355e

Thông tin cấu hình

• Drive Bays: Front bays: • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
• Form Factor: 2U rack server
• I/O Ports: Front ports: • 1 x Dedicated iDRAC (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGAInternal Ports • 1 x USB 3.0Rear Ports • 1 x USB 2.0 • 1 x Serial (optional) • 1 x USB 3.0 • 2 x RJ-45 • 1 x VGA (optional for liquid cooling configuration)

Thông tin cấu hình

• Drive Bays: Front bays: • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB • Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 61.4 TB
• Form Factor: 1U rack server
• I/O Ports: Front ports: • 1 x Dedicated iDRAC Direct micro-USB • 1 x USB 3.0 • 1 x VGAInternal Ports • 1 x USB 3.0 (optional)Rear Ports • 1 x USB 2.0 • 1 x Serial (optional) • 1 x USB 3.0 • 2 x Ethernet • 1 x VGA

Thông tin cấu hình

• Drive Bays: 4 x 3.5-inch cabled SAS/SATA (HDD/SSDs) max 30.72 TB
• Embedded NIC: Broadcom 5720 Dual Port (BC5720DP)
• Processor: Intel Xeon E-2324G (4C/4T, 4.60 GHz)

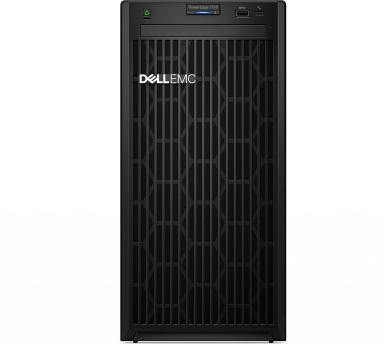

Thông tin cấu hình

• Drive Bays: 4 x 3.5-inch cabled SAS/SATA (HDD/SSDs) max 30.72 TB
• Embedded NIC: BC 5720DP 1GbE LOM
• Form Factor: 4U tower

Thông tin cấu hình

• Processor: Intel Xeon E-2314.
• Memory: 8GB DDR4 UDIMM
• Storage Controllers: Embedded SATA (tích hợp sẵn trên bo mạch chủ)

Thông tin cấu hình

• Form Factor: 1U rack
• Drive Bays: • Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD) max 30.72 TB • Up to 2 x 3.5-inch cabled SAS/SATA (HDD/SSD) max 15.36 TB • Up to 4 x 3.5-inch cabled SAS/SATA (HDD/SSD) max 30.72 TB
• I/O Ports: Networking Options: 2 x 1GbE LOM Front ports: • 1 x USB 2.0 • 1 x iDRAC Direct (Micro-AB USB) port Internal Ports • 1 x USB 3.0 (optional) Rear Ports • 1 x USB 2.0 • 1 x iDRAC ethernet port • 1 x USB 3.0 • 1 x VGA • 1 x Serial port

Thông tin cấu hình

• Drive Bays: Front bays: • 0 drive bay • Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB • Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB • Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB
• Form Factor: 2U rack server
• I/O Ports: Front Ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGA Rear Ports • 1 x USB 2.0 • 1 x Serial (optional) • 1 x USB 3.0 • 2 x Ethernet • 1 x VGA Internal Ports • 1 x USB 3.0 (optional)

Thông tin cấu hình

• Drive Bays: Front bays: • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB • Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 61.4 TB
• Form Factor: 1U rack server
• I/O Ports: Front ports: • 1 x Dedicated iDRAC Direct micro-USB • 1 x USB 3.0 • 1 x VGAInternal Ports • 1 x USB 3.0 (optional)Rear Ports • 1 x USB 2.0 • 1 x Serial (optional) • 1 x USB 3.0 • 2 x Ethernet • 1 x VGA

Thông tin cấu hình

• Drive Bays: Front bays: • Up to 8 x 2.5-inch SAS/SATA (HDD) max 120 TB • Up to 16 x 2.5-inch SAS/SATA (HDD) max 240 TB • Up to 24 x 2.5-inch SAS/SATA (HDD) max 360 TB • Up to 8 x 3.5-inch SAS/SATA (HDD/SAS) max 120 TB • Up to 8 x 3.5-inch SAS/SATA (HDD) + 8 x 2.5-inch NVMe (SSD) max 240 TB
• Form Factor: 5U tower server
• I/O Ports: Front Ports • 1 x iDRAC Direct (Micro-AB USB) port (optional) • 1 x USB 2.0 • 1 x USB 3.0 Rear Ports • 1 x USB 2.0 • 1 x iDRAC Direct (Micro-AB USB) port • 1 x Serial (optional) • 1 x USB 3.0 • 2 x Ethernet • 1 x VGA Internal Ports • 1 x USB 3.0 (optional)

Thông tin cấu hình

• Drive Bays: • Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD) max 30.72 TB • Up to 2 x 3.5-inch cabled SAS/SATA (HDD/SSD) max 15.36 TB • Up to 4 x 3.5-inch cabled SAS/SATA (HDD/SSD) max 30.72 TB
• Form Factor: 1U rack server
• I/O Ports: Networking Options: 2 x 1GbE LOM Front ports: • 1 x USB 2.0 • 1 x iDRAC Direct (Micro-AB USB) port Internal Ports • 1 x USB 3.0 (optional) Rear Ports • 1 x USB 2.0 • 1 x iDRAC ethernet port • 1 x USB 3.0 • 1 x VGA • 1 x Serial port

Thông tin cấu hình

• Drive Bays: Front bays: • Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB • Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB • Up to 8 x 2.5-inch SAS/SATA (HDD) max 61.44 TB
• Form Factor: 2U rack server
• I/O Ports: Front ports: • 1 x Dedicated iDRAC (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGAInternal Ports • 1 x USB 3.0 (optional)Rear Ports • 1 x USB 2.0 • 1 x Serial (optional) • 1 x USB 3.0 • 1 x VGA • 1 x iDRAC dedicated port

Thông tin cấu hình

• Drive Bays: • Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD) max 30.72 TB • Up to 2 x 3.5-inch cabled SAS/SATA (HDD/SSD) max 15.36 TB • Up to 4 x 3.5-inch cabled SAS/SATA (HDD/SSD) max 30.72 TB
• Form Factor: 1U rack
• I/O Ports: Networking Options: 2 x 1GbE LOM Front ports: • 1 x USB 2.0 • 1 x iDRAC Direct (Micro-AB USB) port Internal Ports • 1 x USB 3.0 (optional) Rear Ports • 1 x USB 2.0 • 1 x iDRAC ethernet port • 1 x USB 3.0 • 1 x VGA • 1 x Serial port

Thông tin cấu hình

• Drive Bays: Front bays: • 0 drive bay • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB • Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 76.8 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB
• Form Factor: 1U rack server
• I/O Ports: Front Ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGA Rear Ports • 1 x USB 2.0 • 1 x Serial (optional) • 1 x USB 3.0 • 2 x Ethernet • 1 x VGA Internal Ports • 1 x USB 3.0 (optional)

Thông tin cấu hình

• Drive Bays: Front bays: • 0 drive bay • Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB • Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB • Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB
• Form Factor: 2U rack server
• I/O Ports: Front Ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGA Rear Ports • 1 x USB 2.0 • 1 x Serial (optional) • 1 x USB 3.0 • 2 x Ethernet • 1 x VGA Internal Ports • 1 x USB 3.0 (optional)

Thông tin cấu hình

• Drive Bays: Front bays: • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB • Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 61.4 TB
• Form Factor: 1U rack server
• I/O Ports: Front ports: • 1 x Dedicated iDRAC Direct micro-USB • 1 x USB 3.0 • 1 x VGAInternal Ports • 1 x USB 3.0 (optional)Rear Ports • 1 x USB 2.0 • 1 x Serial (optional) • 1 x USB 3.0 • 2 x Ethernet • 1 x VGA

Thông tin cấu hình

• Drive Bays: 4 x 3.5-inch cabled SAS/SATA (HDD/SSDs) max 30.72 TB
• Embedded NIC: Broadcom 5720 Dual Port (BC5720DP).
• Form Factor: 4U tower server

Thông tin cấu hình

• Drive Bays: Up to 8 x 3.5″ SAS/SATA/SATA Up to 12 x 3.5″ SAS/SATA HDDs Up to 8 x 2.5” SAS/SATA HDD/SSDs Up to 16 x 2.5” SAS/SATA HDD/SSDs or NVMe SSDs Up to 16 x 2.5″ SAS/SATA HDD/SSDs + 8×2.5″ NVMe SSDs Rear: 2 x 2.5” (limited configs) SAS / SATA / NVMe (PERC 11 & 12) Rear Hot-plug BOSS-N1 (2 x M.2 NVMe) for boot Internal: USB. No IDSDM
• I/O Ports: Front Ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGARear Ports • 1 x Dedicated iDRAC Ethernet port • 1 x USB 2.0 • 1 x USB 3.0 • 1 x VGA • 1 x Serial (optional) • 1 x VGA (optional for Direct Liquid Cooling configuration)Internal Ports • 1 x USB 3.0 (optional)
• Form Factor: 2U rack server

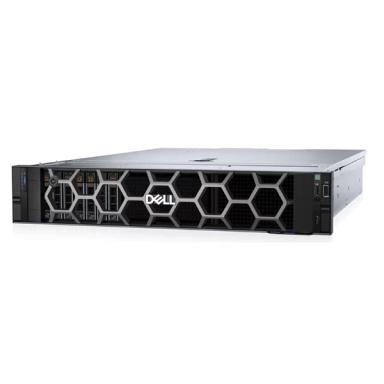

Thông tin cấu hình

• Form Factor: 2U rack server
• Processor: 2 x 4th Generation Intel® Xeon® Scalable (with up to 32 cores per processor)
• Memory: 16 DDR5 DIMM slots (hỗ trợ tối đa RDIMM 2 TB, speeds up to 4800 MT/s) Chỉ hỗ trợ registered ECC DDR5 DIMMs
